Quality Thermostatic Radiator Valve N10161002

Thermostatic Radiator Valves

Quality Thermostatic Radiator Valve N10161002
Quality Thermostatic Radiator Valve N10161002
Quality Thermostatic Radiator Valve N10161002

Key words: Thermostatic Radiator Valve, Radiator Valves, TRV Valves, Brass Radiator Valves, Angle Radiator Valves, Radiator Thermostatic Valves, Radiators Valves, Square Radiator Valves, Radiator Control Valve, Corner Thermostatic Radiator Valves

Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR

Applications: Fluid control system for building and heating system, house heating system

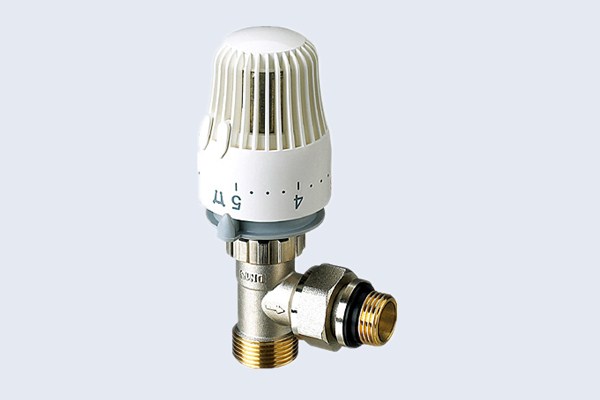

Brass Thermostatic Radiator Valve is a device used to control the temperature of radiators, the flow rate is adjusted by the vertical opening and closing of spindle inside, which operated through the control of thermostatic head which has a function of setting temperature, reacts to temperature fluctuations and to control individual room temperature.

Product Information:

Product name Brass Thermostatic Radiator Valve
Sizes 1/2", 3/4"
Bore Standard bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN10 / 150Psi
Working temperature
-10 to 110°C
Working durability
10,000 cycles
Quality standard
EN215
End Connection
BSP, NPT
Features:
Automatic temperature control
Anti-blow-out stem structure
100% leakage test for each valve
OEM production acceptable
Materials
Spare Part
Material
 Body
Forged brass, sandblasted and nickel-plated
Bonnet
Forged brass, sandblasted and nickel-plated
Ball
N/A
Handle
Thermostatic head
Nut
Steel
Stem
Brass
Seat NBR
Packing
Inner boxes in cartons, loaded in pallets
Customized design acceptable

1, Production flow of Brass Radiator Valves:
Production flow of China Brass Ball Valves

2, Brass material Chemical composition used for brass radiator valves:
brass material for China Brass Ball valves

3, Bore sizes for brass radiator valves:
Bore sizes for China brass ball valves

4, Available surface treatments of brass radiator valves:
Available surface treatments of brass ball valves

5, Installation instruction of brass radiator valves:
Installation instruction of China brass ball valves

6, Packing of brass radiator valves:
Standard export packing, inner boxes in cartons, loaded in pallets
Packing of brass ball valves

7, Testing Lab for brass radiator valves:
In our testing labs we have excellent equipments to test our product, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
Testing Lab for China brass ball valves

8, Why choose NAFCO as your China Brass Radiator Valve Supplier?
NAFCO is your best China Brass Ball Valve Supplier
NAFCO is a professional China brass radiator valve Manufucturer with reliable and stable quality.
You are welcome to contact us for any questions you have.
