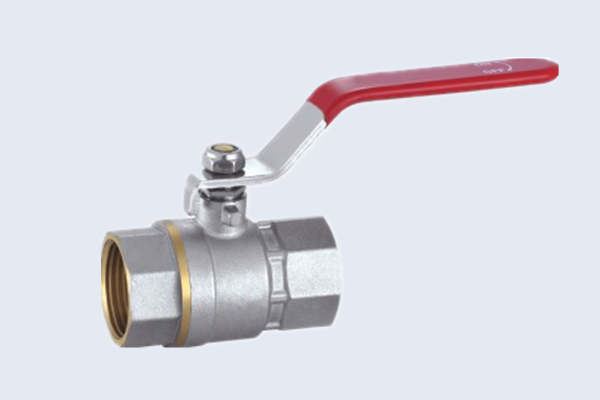

Standard Bore HPb57-3 Brass Ball Valves N10112022
Key words: Forged Brass Ball Valves, Nickel-plated Brass Ball Valves, CW617 Brass Ball Valve Manufacturers, Brass Filter Ball Valve, Brass Ball Valves China, Brass Valve, Removable Filter Brass Ball Valve, China Brass Ball Valves, Ball Valve Brass, Ball Valve Suppliers, Brass Ball Valve Manufacturer, Brass Ball Valves For Water
Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR, Lead-free
Applications: Fluid control system for building and plumbing: Water,oil, and other non-corrosive liquid
Brass ball valve is made of forged brass and operated with handle, easy to open and close, widely used for plumbing, heating, and pipelines. Brass Ball Valve series is specially designed for Italian market.
Product Information:
| Product name | Standard Bore HPb57-3 Brass Ball Valves N10112022 | |
| Sizes | 1/2"~2" | |
| Bore | Standard bore | |
| Application | Water, oil, and other non-corrosive liquid | |
| Working pressure | PN30 / 500Psi | |
|
Working temperature
|
-10 to 110°C
|
|
|
Working durability
|
10,000 cycles
|
|
|
Quality standard
|
EN13828, EN228-1
|
|
|
End Connection
|
BSP, NPT
|
|
|
Features:
|
Heavy-duty design for higher pressure
|
|
|
Anti-blow-out stem structure
|
||
|
100% leakage test for each valve
|
||
|
OEM production acceptable
|
||
|
Materials
|
Spare Part
|
Material |
|
Body
|
Forged brass, sandblasted and rough color | |
|
Bonnet
|
Forged brass, sandblasted and rough color | |
|
Ball
|
Forged brass, polished and chrome-plated | |
|
Handle
|
Steel, Chrome-plated | |
|
Nut
|
Steel | |
|
Stem
|
Brass | |
| Filter Screen | Stainless Steel | |
|
Ball seat
|
PTFE | |
|
Packing
|
Inner boxes in cartons, loaded in pallets
|
|
| Customized design acceptable | ||
1, Production flow of brass ball valve China:
2, Brass material Chemical composition used for brass ball valve producer:
3, Bore sizes for brass ball valve standard:
4, Available surface treatments of brass ball valve China:
5, Installation instruction of brass ball valves China:
6, Packing of brass ball valves China:
Standard export packing, inner boxes in cartons, loaded in pallets
7, Testing Lab for brass ball valve production:
In our testing labs we have excellent equipments to test our product, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
8, Why choose NAFCO as your China Brass Ball Valve Supplier?
NAFCO is a professional brass ball valve China manufucturer with reliable and stable quality. You are welcome to contact us for any questions you have.
