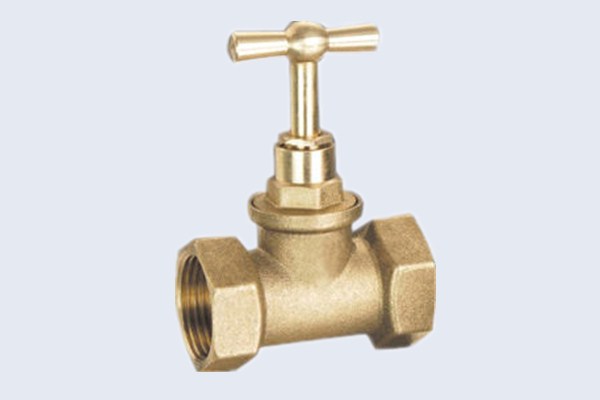

Brass Stop Valve N10121010

Brass Stop Valves

Brass Stop Valve N10121010
Brass Stop Valve N10121010
Brass Stop Valve N10121010

Key words: Brass Stop valves, Forged Brass Stop valves, Nickel-plated Brass Stop valves, Brass Valves, Stop valves, Water Stop Valve, Toilet Stop Valve, Water Stop Tap, Brass Globe Valve

Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR, Lead-free

Applications: Fluid control system for building and plumbing: Water,oil, and other non-corrosive liquid

Brass stop valve is made of forged brass and operated with handle, the flow rate is controlled by the spindle which moves in vertical direction, easy to open and close, widely used for plumbing, heating, and pipelines.

Product Information:

Product name Brass Stop Valve
Sizes 1/2", 3/4"
Bore Standard bore
Application Water, oil, and other non-corrosive liquid
Working pressure PN16 / 200Psi
Working temperature
-10 to 110°C
Working durability
10,000 cycles
Quality standard
EN5154, EN228-1
End Connection
BSP, NPT
Features:
Heavy-duty design for higher pressure
Anti-blow-out stem structure
100% leakage test for each valve
OEM production acceptable
Materials
Spare Part
Material
Body
Forged brass, sandblasted and rough colour
Bonnet
Forged brass, sandblasted and rough colour
Disc Brass
Handle
Zinc with brass coating
Gland nut
Brass
Stem
Brass
Spindle
Brass
Packing
Inner boxes in cartons, loaded in pallets
Customized design acceptable

1, Production flow of Brass Stop Valves:
Production flow of China Brass Ball Valves

2, Brass material Chemical composition used for brass stop valves:
brass material for China Brass Ball valves

3, Bore sizes for brass stop valves:
Bore sizes for China brass ball valves

4, Available surface treatments of brass stop valves:
Available surface treatments of brass ball valves

5, Installation instruction of brass stop valves:
Installation instruction of China brass ball valves

6, Packing of brass stop valves:
Standard export packing, inner boxes in cartons, loaded in pallets
Packing of brass ball valves

7, Testing Lab for brass stop valves:
In our testing labs we have excellent equipments to test our product, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
Testing Lab for China brass ball valves

8, Why choose NAFCO as your China Brass Stop Valve Supplier?
NAFCO is your best China Brass Ball Valve Supplier
NAFCO is a professional China brass stop valve manufucturer with reliable and stable quality.
You are welcome to contact us for any questions you have.
