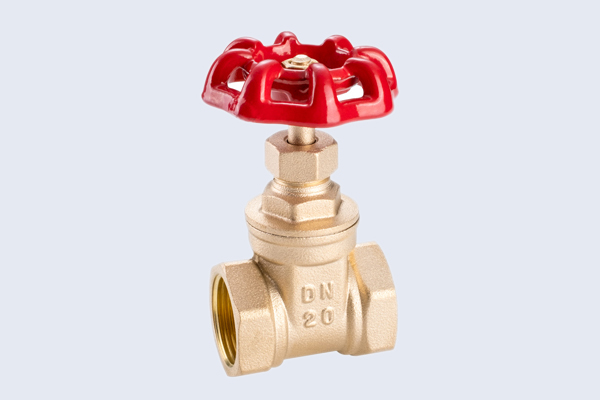

CW617N Brass Gate Valve N10122012
Quality CW617N Brass Gate Valves, OEM Brand Service Available
Description
Key Features
Reviews
NAFCO Brass gate valves are made of forged brass and operated with hand wheel, the flow rate is controlled by the disc which moves in vertical direction, easy to open and close, widely used for plumbing, heating, and pipelines.
Product Information:
| Product Image |
|
|
| Product name | CW617N Brass Gate Valve | |
| Sizes | 1/2"~ 2" | |
| Bore | Standard bore | |
| Application | Water, oil, and other non-corrosive liquid | |
| Working pressure | PN10 / 150Psi | |
|
Working temperature
|
-20 to 200°C
|
|
|
Working durability
|
10,000 cycles
|
|
|
Quality standard
|
EN5154, EN228-1
|
|
|
End Connection
|
BSP, NPT
|
|
|
Features:
|
Heavy-duty design for higher pressure
|
|
|
Anti-blow-out stem structure
|
||
|
100% leakage test for each valve
|
||
|
OEM production acceptable
|
||
|
Materials
|
Spare Part
|
Material |
|
Body
|
Forged brass, sandblasted and rough colour | |
|
Bonnet
|
Forged brass, sandblasted and rough colour | |
| Disc | Brass | |
|
Handwheel
|
Cast iron | |
|
Nut
|
Steel | |
|
Stem
|
Brass | |
|
Screw
|
Brass | |
|
Packing
|
Inner boxes in cartons, loaded in pallets
|
|
| Customized design acceptable | ||
1, Production flow of China Brass Gate Valves:
2, Brass material Chemical composition used for brass gate valves China:
3, Bore sizes for China Brass Gate Valves:
4, Available surface treatments of Brass Gate Valves China:
5, Installation instruction of Brass Gate Valves China:
6, Packing of Brass Gate Valves China:
Standard export packing, inner boxes in cartons, loaded in pallets
7, Testing Lab for brass gate valves China:
In our testing labs we have excellent equipments to test our product, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
8, Why choose NAFCO as your Brass Gate Valve Suppliers in China?
NAFCO is a professional brass gate valve manufucturers China with reliable and stable quality.
You are welcome to contact us for any questions you have.
Key Words: CW617N Brass Gate Valves, Full Bore Brass Gate Valves, Standard Bore Gate Valve,Gate Valve Brass, Forged Brass Gate Valve, Brass Gate Valves, Gate Valve Manufacturers, 200WOG Brass Gate Valve, Brass Gate Valves 1/2", HPb57-3 Brass Gate Valves, Gate Valves For Water
Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR, Lead-free
Applications: Fluid control system for building and plumbing: Water,oil, and other non-corrosive liquid
