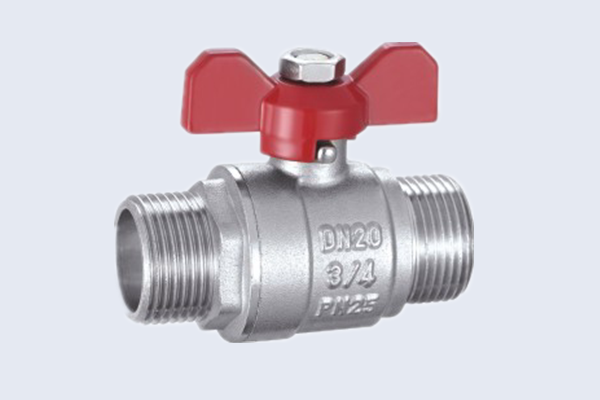

PN25 T-handle Nickel-plated Brass Ball Valve N10111202MM
China PN25 Brass Ball Valves, Nickel-plated Brass Ball Valves, Forged Brass Ball Valves
Description
Download
Reviews
Forged brass ball valve is made of forged brass, installed in pipelines to control or change the direction of flow by the open and close of brass ball inside which operated with handle, easy to open and close, widely used for plumbing, heating, sanitary and HAVC.
Product Information:
Product name | PN25 T-handle Nickel-plated Forged Brass Ball Valve | |
Sizes | 1/2"~2" | |
Bore | Standard bore | |
Application | Water, oil, and other non-corrosive liquid | |
Working pressure | PN25 / 400Psi | |
Working temperature
|
-10 to 110°C
|
|
Working durability
|
10,000 cycles
|
|
Quality standard
|
EN13828, EN228-1
|
|
End Connection
|
BSP, NPT
|
|
Features:
|
Heavy-duty design for higher pressure
|
|
Anti-blow-out stem structure
|
||
100% leakage test for each valve
|
||
OEM production acceptable
|
||
Materials
|
Spare Part
|
Material |
Body
|
Forged brass, sandblasted and nickel-plated | |
Bonnet
|
Forged brass, sandblasted and nickel-plated | |
Ball
|
Forged brass, polished and chrome-plated | |
Handle
|
Aluminum with coating | |
Nut
|
Steel | |
Stem
|
Brass | |
Ball seat
|
PTFE | |
Packing
|
Inner boxes in cartons, loaded in pallets
|
|
Customized design acceptable |
1, Production flow of China Brass Ball Valves:
Full and detailed production processes, please refer to: China Brass Ball Valve Production Processes
2, Brass material Chemical composition used for brass ball valves in China:
More details please refer to blog article How to Select China Brass Valve Material
3, Bore sizes for China brass ball valves:
4, Available surface treatments of brass ball valves in China:
5, Installation instruction of China brass ball valves:
Full details please refer to blog article NAFCO | Brass Ball Valve Installation Instruction
6, Packing of China brass ball valves:
Standard export packing, inner boxes in cartons, loaded in pallets
7, Testing Lab for brass ball valves in China:
In our testing labs we have excellent equipments to test our product, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
More details please refer to blog article Quality Test for China Brass Ball Valves
8, Why choose NAFCO as your China Brass Ball Valve Suppliers?
NAFCO is a professional China brass ball valves Manufucturer with reliable and stable quality.
You are welcome to contact us for any questions you have.
Key words: Brass Ball Valves, Brass Ball Valves, Forged Brass Ball Valves, Brass Ball Valve 3/4", Brass Ball Valve Price, Brass Ball Valves For Water, Brass Valve Manufacturer, China Brass Ball Valves, Nickel-plated Brass Ball Valve, Forged Brass Ball Valve, Brass Ball Valve China, Forged Brass Ball Valve Price List, Full Port Brass Ball Valve, Brass Ball Valves China
Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR, Lead-free
Applications: Fluid control system for building and plumbing: Water,oil, and other non-corrosive liquid
