Valves
Contact Now
Pressure Reducer Valve N10172007
Air Release Valve, Pressure Valve, Pressure Reducer Valve
Description
Key Features
Reviews

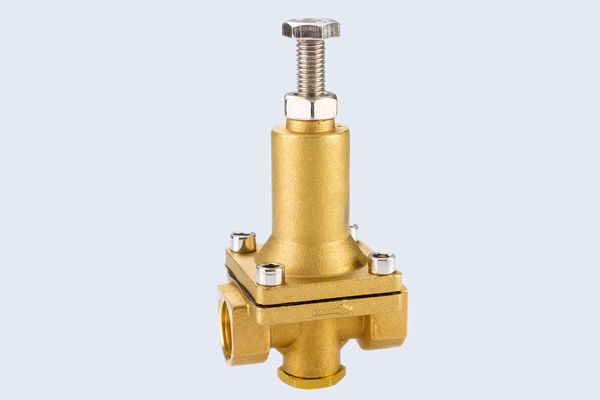

Pressure reducer Valve is made of forged brass and designed to release when pressure goes over rated, to keep at certain safe pressure for fluid control system, widely used for house heating system.
Product Information:
| Product Image |
|
|
| Product name |
Pressure Reducer Valve |
|
| Sizes | 1/2", 3/4", 1" | |
| Bore | Standard bore | |
| Application | Water, oil, and other non-corrosive liquid | |
| Working pressure | PN10 / 150Psi | |
| Working temperature | -20 to 200°C | |
| Working durability | 10,000 cycles | |
| Quality standard | ISO228-1 | |
| End Connection | BSP, NPT | |
| Features: | Forged valve body | |
| Anti-blow-out stem structure | ||
| 100% leakage test for each valve | ||
| OEM production acceptable | ||
| Materials | Spare Part | Material |
| Body | Forged brass, sand-blasted | |
| Bonnet | Forged brass, sand-blasted | |
| Handle | N/A | |
| Cap | Brass | |
| Nut | Steel | |
| Stem | Brass | |
| Seat | NBR | |
| Packing | Inner boxes in cartons, loaded in pallets | |
| Customized design acceptable | ||
1, Production flow of pressure reducer valves China:
2, Brass material Chemical composition used for China pressure reducer valves:
3, Bore sizes for pressure reducer valves China:
4, Available surface treatments of China pressure reducer valves:
5, Installation instruction of pressure reducer valves in China:
6, Packing of China pressure reducer valves:
Standard export packing, inner boxes in cartons, loaded in pallets
7, Testing Lab for pressure reducer valves:
In our testing labs we have excellent equipments to test our product, not only during production, but also for samples and product development, strict test is the basis of quality system, and makes sure every process and progress conform to relative standards.
8, Why choose NAFCO as your pressure reducer valves China supplier?
NAFCO is a professionalpressure reducer valves China manufucturer with reliable and stable quality.
You are welcome to contact us for any questions you have.
Key words: Brass Safety Valves, Brass Pressure Relief Valve, Brass Relief Valve, Brass Air Release Valve, Air Pressure Safety Relief Valves, Gas Pressure Relief Valve, Air Pressure Relief Valve Manufacturers, Pressure Relief Valve Air Compressor, Air Tank Pressure Relief Valve, 15 Psi Pressure Relief Valve, Pop Safety Valve
Optional Materials: Brass CW617N, CW614N, HPb57-3, H59-1, C37700, DZR, Lead-free
Applications: Fluid control system for boiler heater: water and other non-corrosive liquid
